Air-to-water heat pump
Official
importer
importer
Available in-store
Delivery time when ordering from the online store 1-3 business days

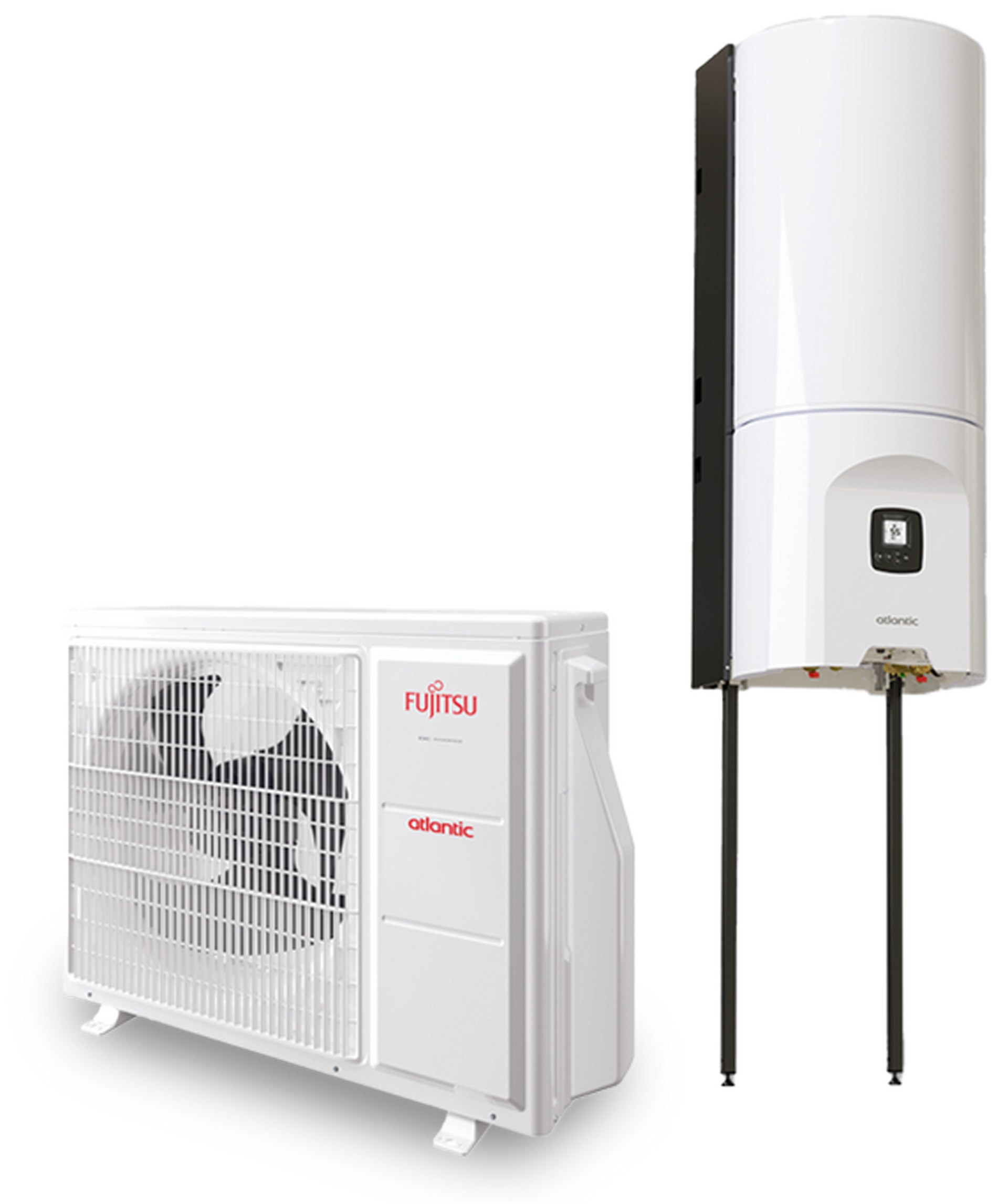

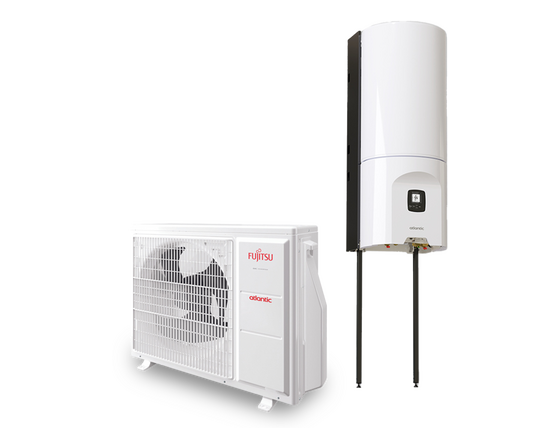

Synea DUO 3
4 158,00 €
4 458,00 €
3 353,23 € + VAT
Product code: 527363
Not sure if the product is right for you? Use our climate calculator and find the most suitable solution for you.
Technical specifications
| Manufacturer | Atlantic | Atlantic | Atlantic |
|---|---|---|---|
| Model | Synea DUO 3 | Synea DUO 4 | Synea DUO 6 |
| Heated area | up to 90 m² | up to 110 m² | up to 130 m² |
| Product code | 527363 | 527364 | 527365 |
| Heating capacity Outdoor air +35°C/ 7°C | 3.3 kW | 4.6 kW | 5.6 kW |
| Product type | Air-to-water heat pump | Air-to-water heat pump | Air-to-water heat pump |
| Energy efficiency class (35°/55°) | A+++/A++ | A+++/A++ | A+++/A++ |
| SCOP | 4.6 | 4.61 | 4.82 |
| Warranty | 5 years | 5 years | 5 years |
| Wi-Fi smart remote control | Yes | Yes | Yes |
| Operating limit (Heating) | -20 ~ 35 °C | -20 ~ 35 °C | -20 ~ 35 °C |
| Refrigerant | R32 | R32 | R32 |
| Pipe size (Liquid/Gas) | 6.35/12.7 mm | 6.35/12.7 mm | 6.35/12.7 mm |
| Maximum pipe length | 30 m | 30 m | 30 m |
| Power supply voltage | 230/1/50 V/Ph/Hz | 230/1/50 V/Ph/Hz | 230/1/50 V/Ph/Hz |
| Protection circuit breaker | 16 A | 16 A | 16 A |
| Control and monitoring via the Internet | Yes | Yes | Yes |
| Electric auxiliary heating element | 3 kW | 3 kW | 3 kW |
| Domestic hot water boiler capacity | 150 l | 150 l | 150 l |
| Maximum heating water temperature | 55 °C | 55 °C | 55 °C |

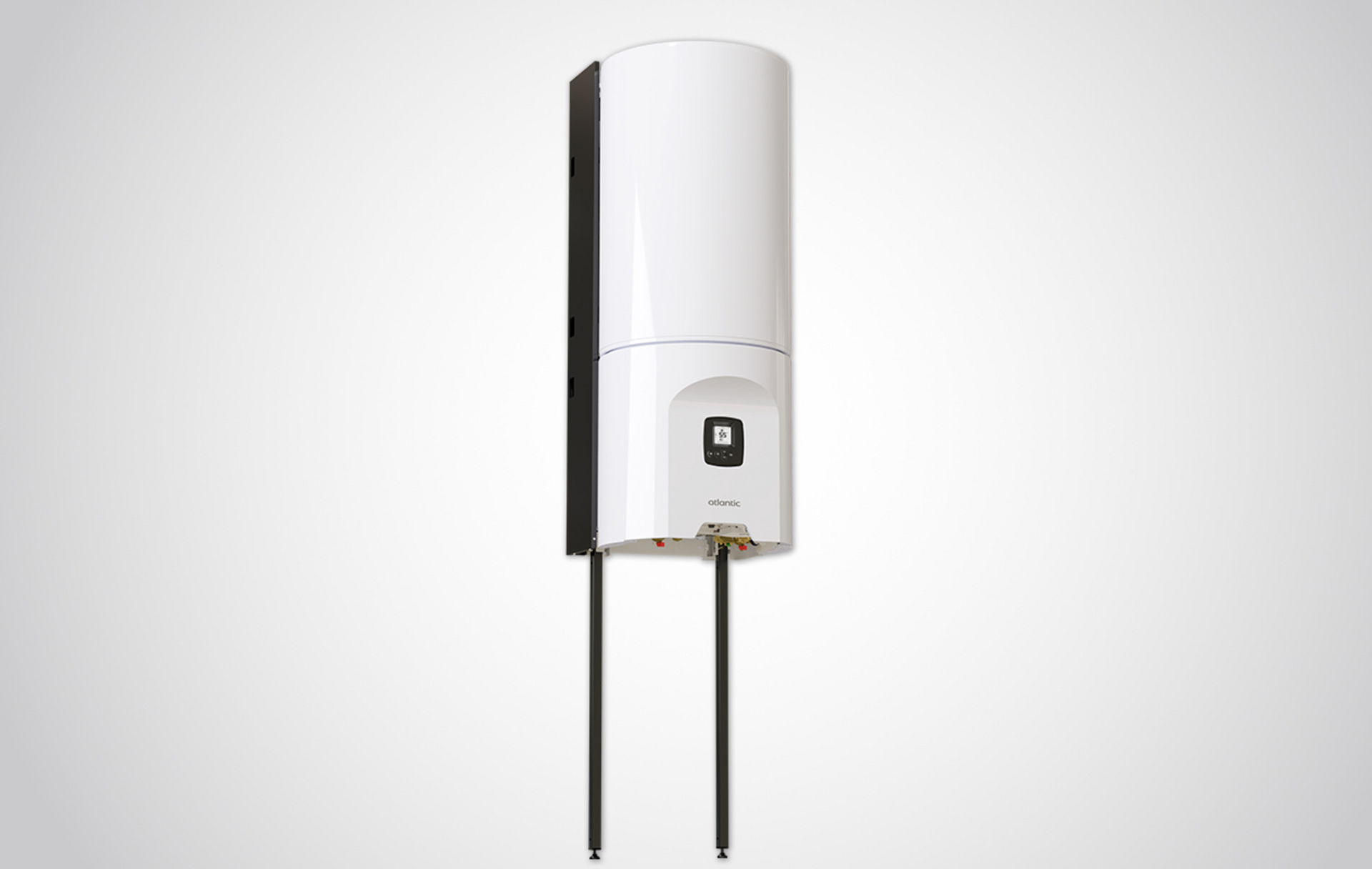

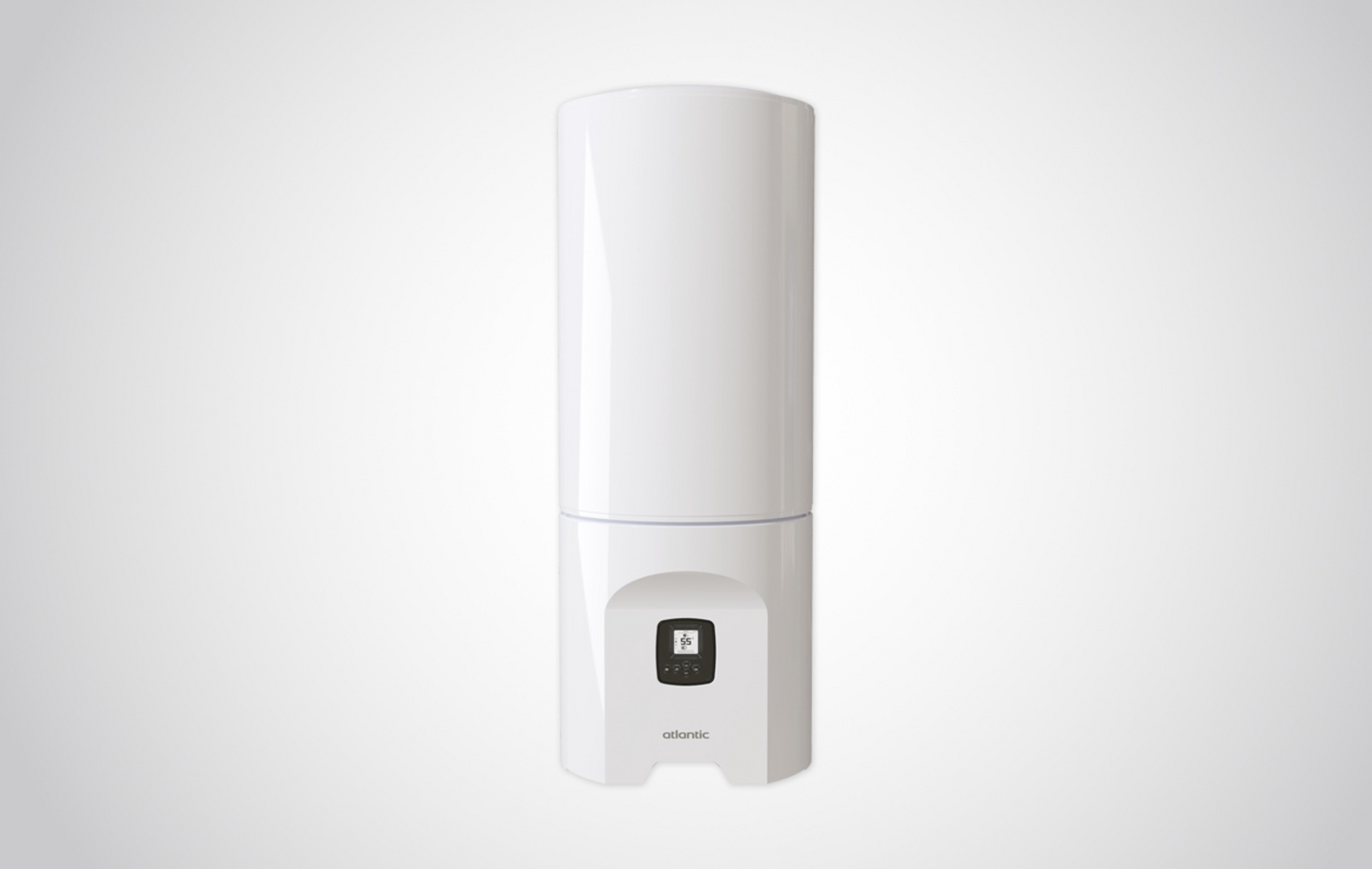

| Indoor unit | |||
| Indoor unit weight | 101/253 kg | 101/253 kg | 101/253 kg |
| Indoor unit dimensions (width x height x depth) | 568x1474x616 mm | 568x1474x616 mm | 568x1474x616 mm |
| Indoor unit noise level | 32 dB(A) | 32 dB(A) | 32 dB(A) |

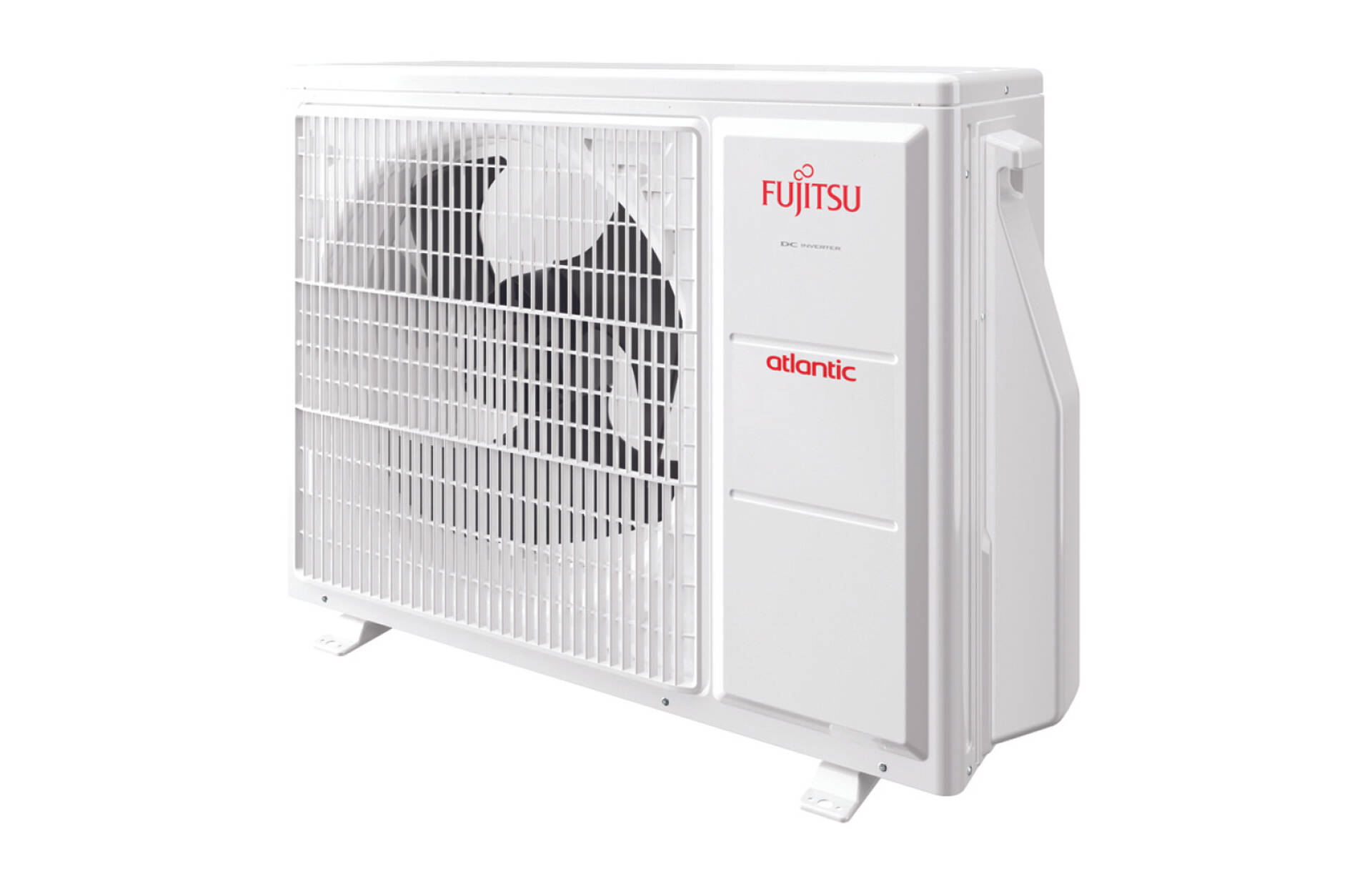

| Outdoor unit | |||
| Outdoor unit weight | 39 kg | 39 kg | 39 kg |
| Outdoor unit dimensions (width x height x depth) | 799x632x290 mm | 799x632x290 mm | 799x632x290 mm |
| Outdoor noise level | 35 dB(A) | 35 dB(A) | 35 dB(A) |
