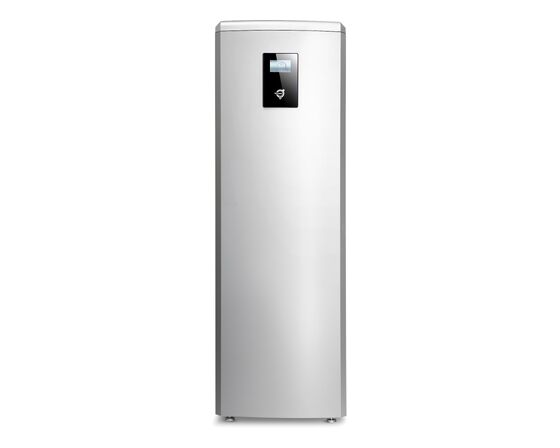

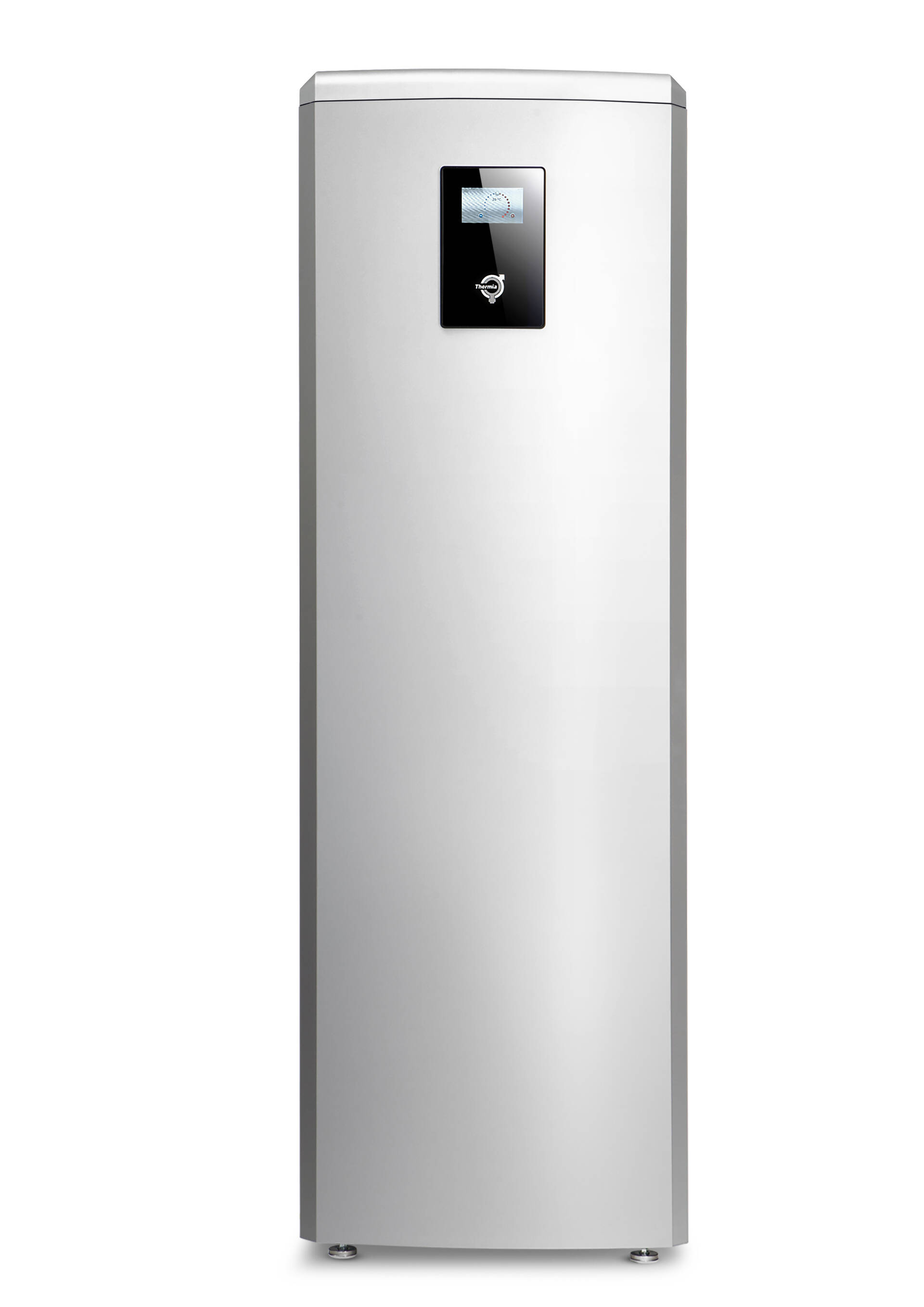

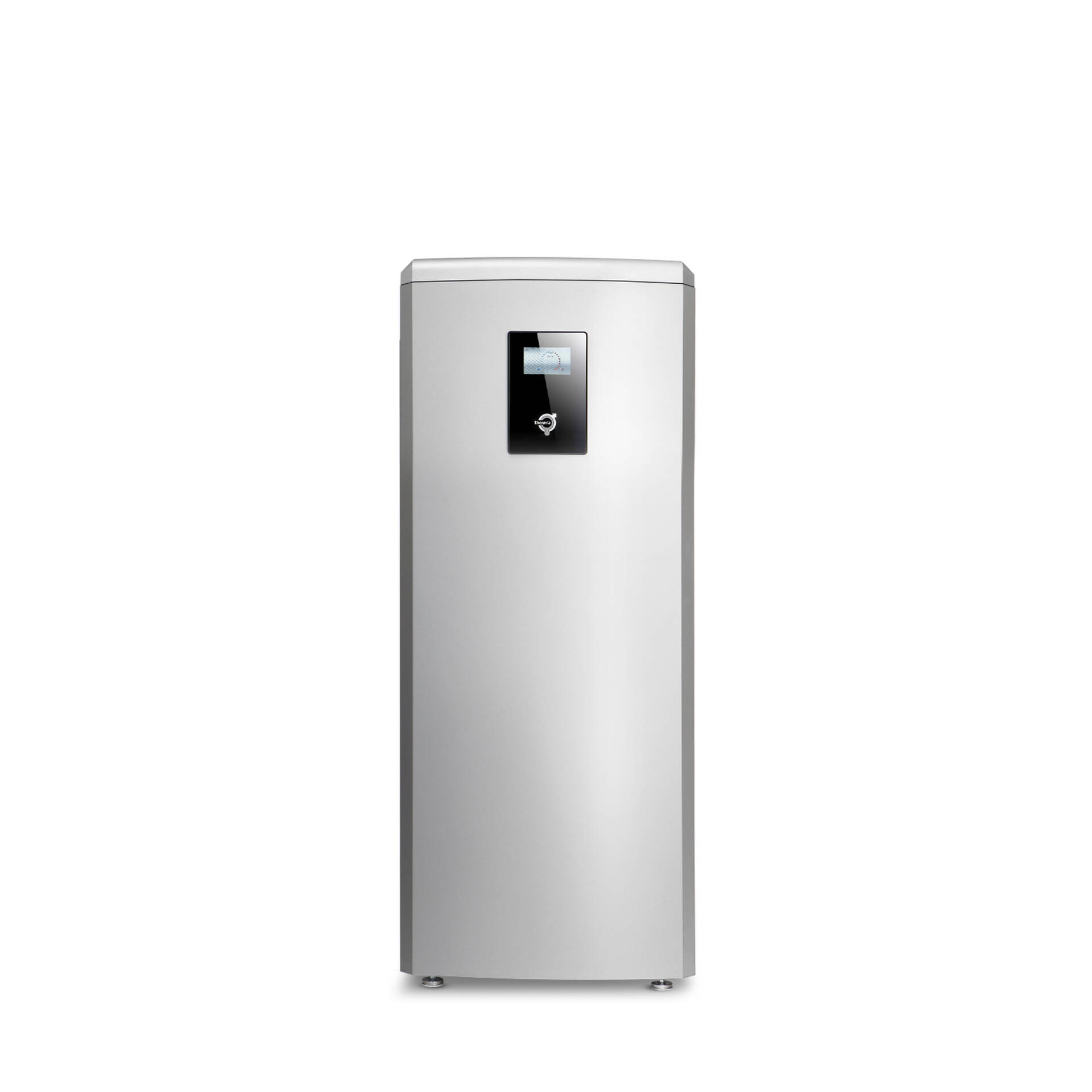

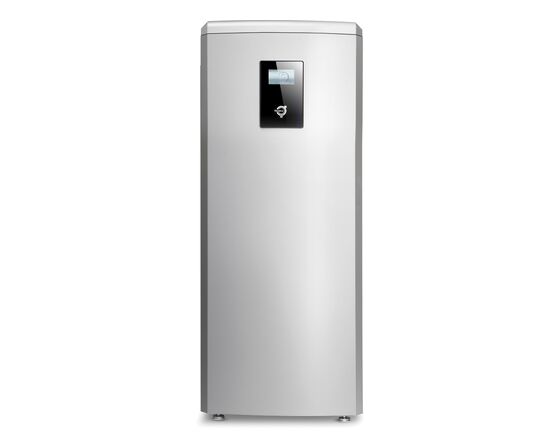

Ground source heat pump Thermia Atlas
World-class heating performance
Heating area
9 821,00 €
8 050,00 € + VAT
On order
2 318,00 €
Product code: 086L6199
- World-class heating capacity (SCOP 6.15)
- Best Scandinavian design and functionality
- Large amounts of domestic hot water (545 liters)
- Lower noise level than competitors (30-43 dB(A))
- Inverter technology adapts precisely to real-time demand
- Versatility – suitable for both new and renovated buildings
- Integrated solution – heating, domestic hot water, and optional cooling
- Online and Smart functions integrated - control according to NordPool electricity market prices
- A+++ energy class when the heat pump is part of an integrated system
- A+++ energy class when the heat pump is the sole heat source. (Energy class calculated according to the Ecodesign Directive 811/2013)
Not sure if the product is right for you? Use our climate calculator and find the most suitable solution for you.
Technical specifications
Manufacturer | Thermia | Thermia |
---|---|---|
Model | Atlas 12 Duo | Atlas 18 Duo |
Heated area | up to 300 m² | up to 380 m² |
Product code | 086L6199 | 086L6188 |
Product type | Ground source heat pump | Ground source heat pump |
Energy efficiency class | A+++ | A+++ |
SCOP | 5.86 | 6.15 |
Warranty | 2 years | 2 years |
Estonian language menu | Yes | Yes |
Wi-Fi smart remote control | Yes | Yes |
Refrigerant | R410A | R410A |
Power supply voltage | 400 V/Ph/Hz | 400 V/Ph/Hz |
Protection circuit breaker | 10/16/20/25 A | 13/20/25/32 A |
Active cooling option | Yes | Yes |
COP | 4.75 | 4.98 |
Control and monitoring via the Internet | Yes | Yes |
Electric auxiliary heating element | 9 kW | 9 kW |
Domestic hot water boiler capacity | Separate | Separate |
Heating capacity (B0/W35) | 12 kW | 18 kW |
Auxiliary heating element power | 9 kW | 9 kW |
Passive cooling option | Jah | Jah |
Indoor unit | ||
Indoor unit weight | 137 kg | 147 kg |
Indoor unit dimensions (width x height x depth) | 1450 x 598 x 703 mm | 1863 x 598 x 703 mm |
Indoor unit noise level | 31-45 dB(A) | 33-46 dB(A) |
