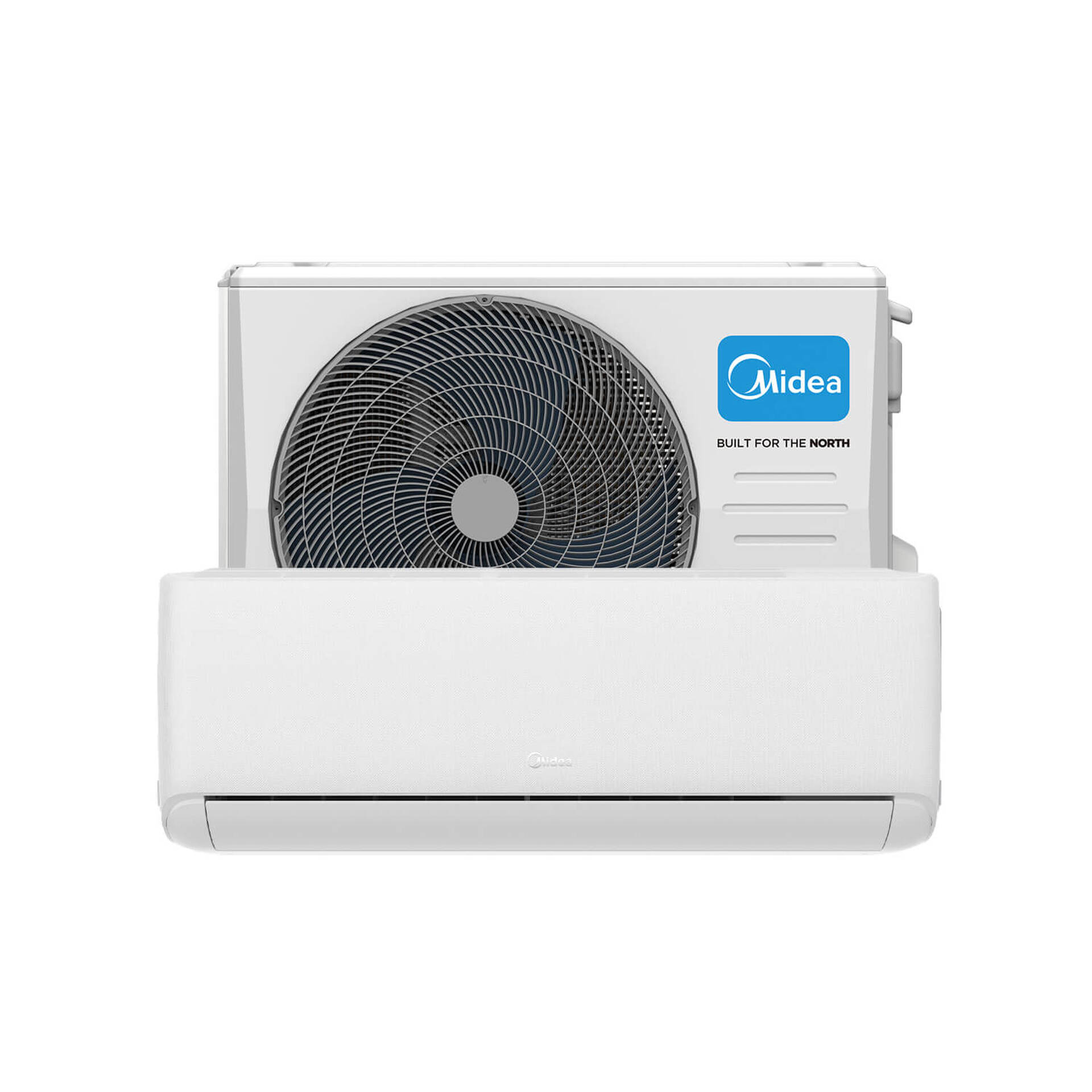

Air-to-air heat pump Midea Raynor Nordic
Midea Raynor Nordic air source heat pump is designed for reliable heating even at temperatures down to -40 °C, offering energy-efficient AI EcoMaster control, WiFi connectivity, and stable heating performance even in colder conditions.
Available in-store
Delivery time when ordering from the online store 1-3 business days
Raynor Nordic 12
1 290,00 €
1 040,32 € + VAT
Product code: EX-12RE1N-I + EXH-12RE1N-O
-
Operates in heating mode down to -40 °C
-
Indoor unit fan with ceramic ball bearings
-
High-temperature 56°C indoor unit heat exchanger sterilization
-
Heating capacity at -7 °C: 5.5 kW
-
Heating capacity at -25 °C: 4.6 kW
-
Heating capacity at -35 °C: 3.2 kW
-
+8 energy-saving mode
-
WiFi controller included as standard
Not sure if the product is right for you? Use our climate calculator and find the most suitable solution for you.
Technical specifications
| Manufacturer | Midea |
|---|---|
| Model | Raynor Nordic 12 |
| Heated area | up to 80 m² |
| Cooled area | up to 60 m² |
| Product code | EX-12RE1N-I + EXH-12RE1N-O |
| Heating capacity (Min./Nom./Max.) | 1.0/4.2/8.0 kW |
| Cooling capacity (Min./Nom./Max.) | 1.1/3.5/5.1 kW |
| Product type | Air-to-air heat pump |
| Energy efficiency class | A+++ |
| Warranty | 2 years |
| Wi-Fi smart remote control | Yes |
| Operating limit (Cooling) | -15 ~ 50 °C |
| Operating limit (Heating) | -40 ~ 24 °C |
| Refrigerant | R32 |
| Pipe size (Liquid/Gas) | 6.35/9.52 mm |
| Maximum height difference | 10 m |
| Maximum pipe length | 25 m |
| Power supply voltage | 220-240/1/50 V/Ph/Hz |
| Protection circuit breaker | 14 A |
| SCOP (Warm/medium/cold climate) | 5.1 |

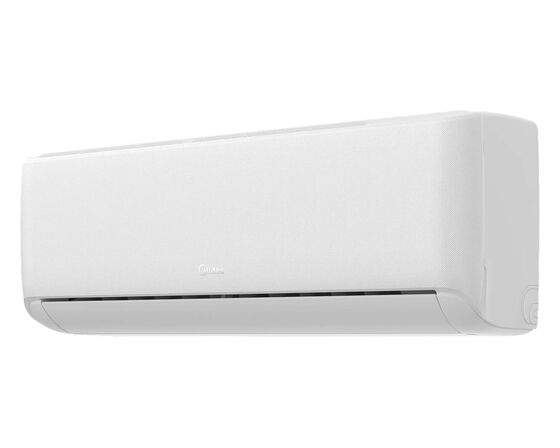

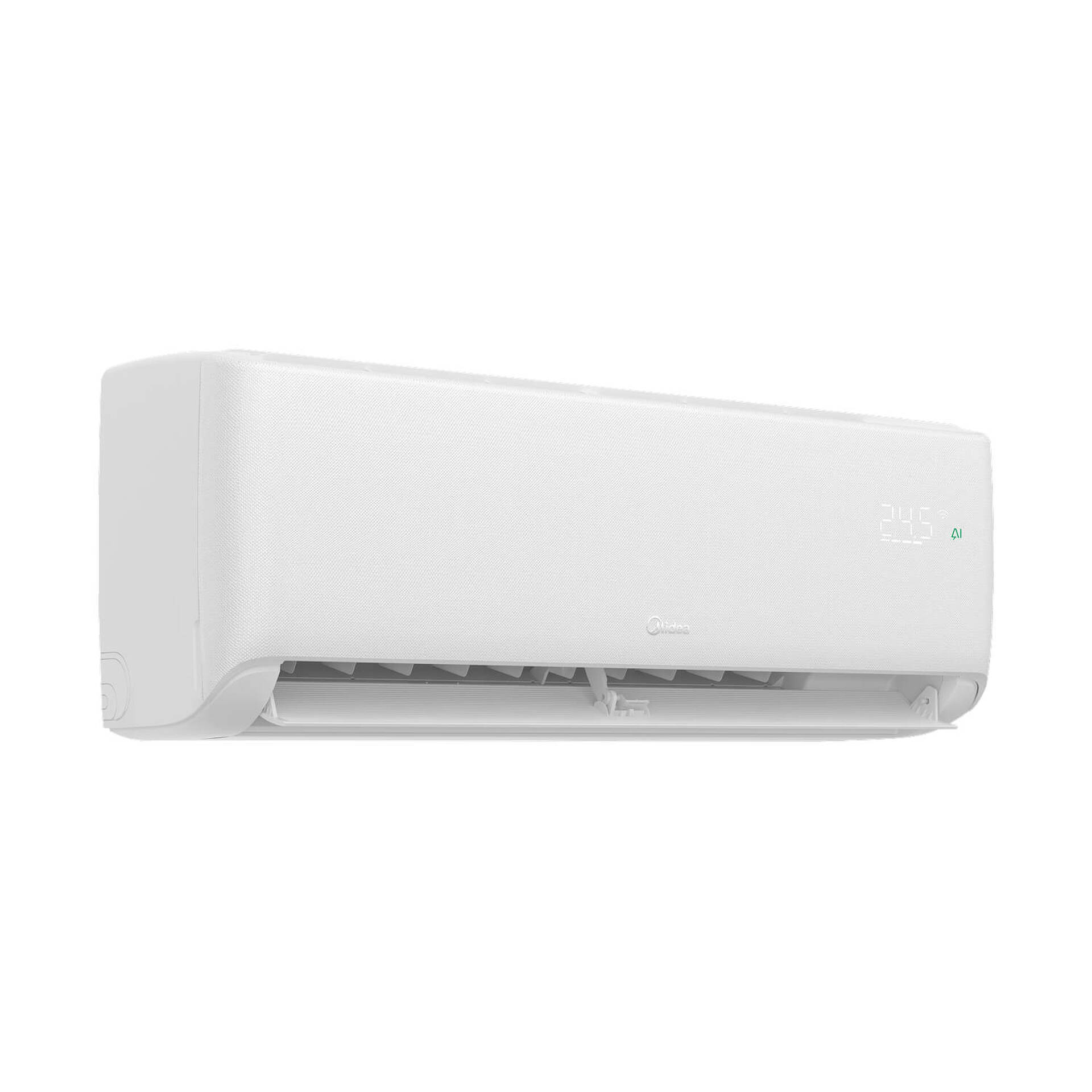

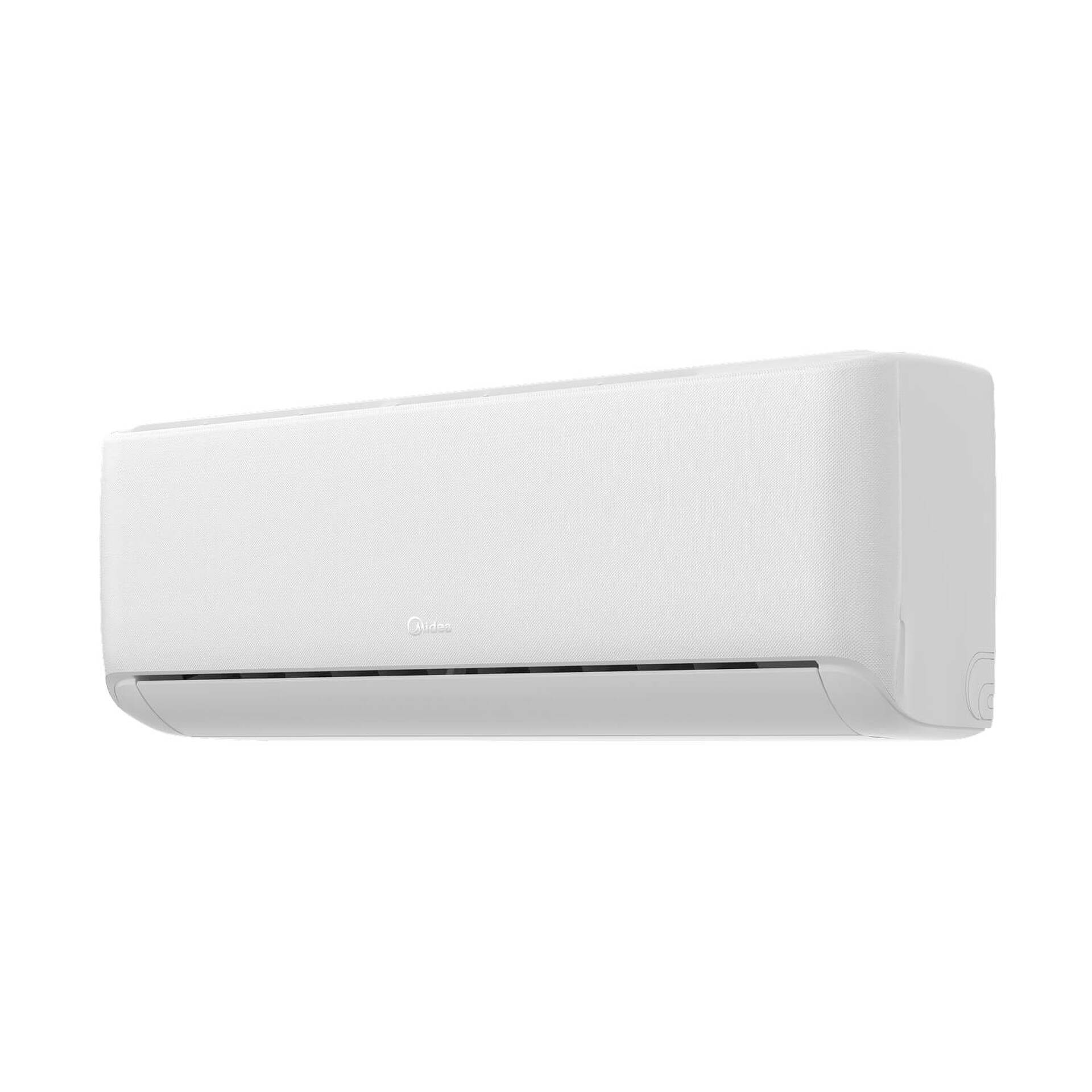

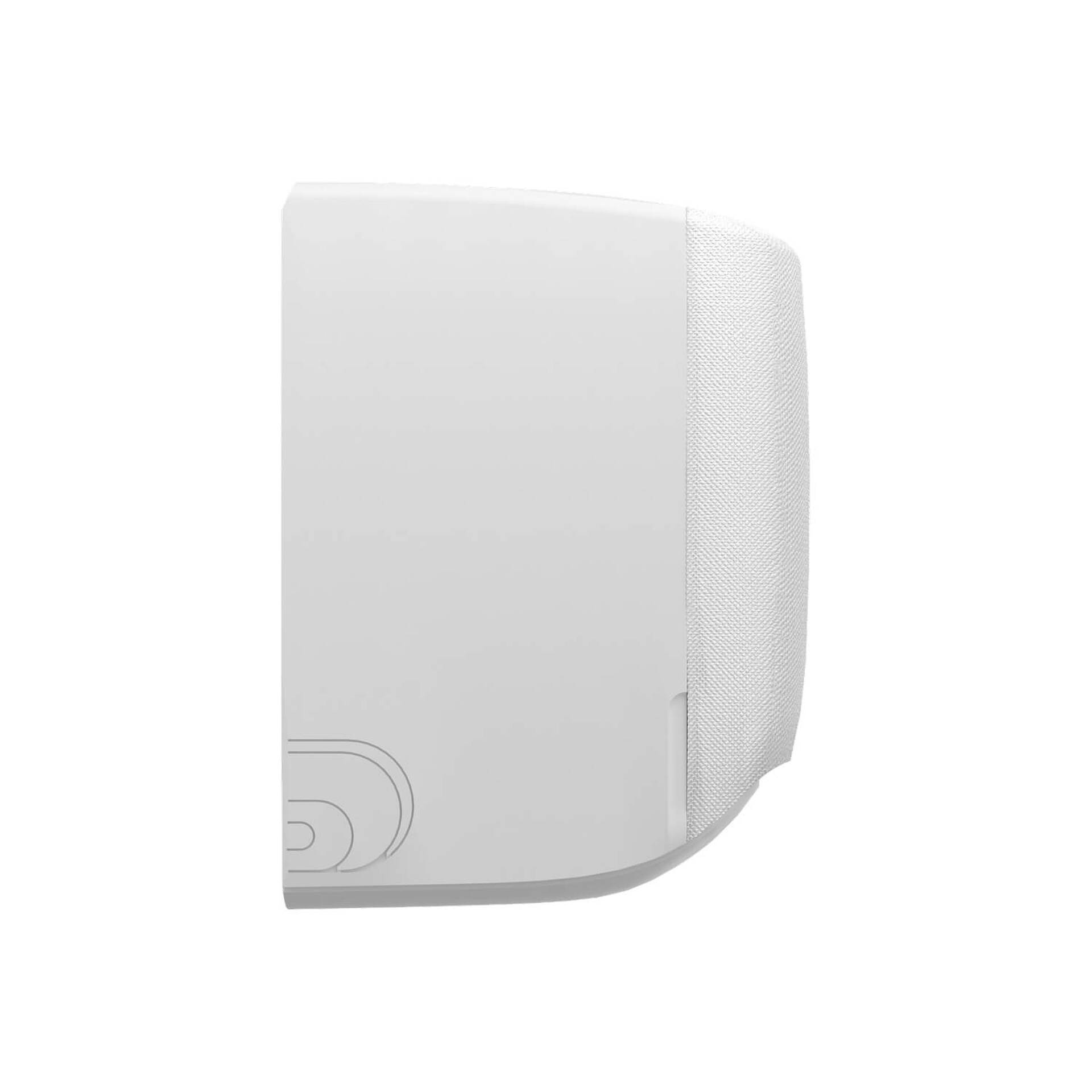

| Indoor unit | |
| Indoor unit weight | 9.8 kg |
| Indoor unit dimensions (width x height x depth) | 876x309x194 mm |
| Indoor unit noise level | 19/22/32/40/45 dB(A) |

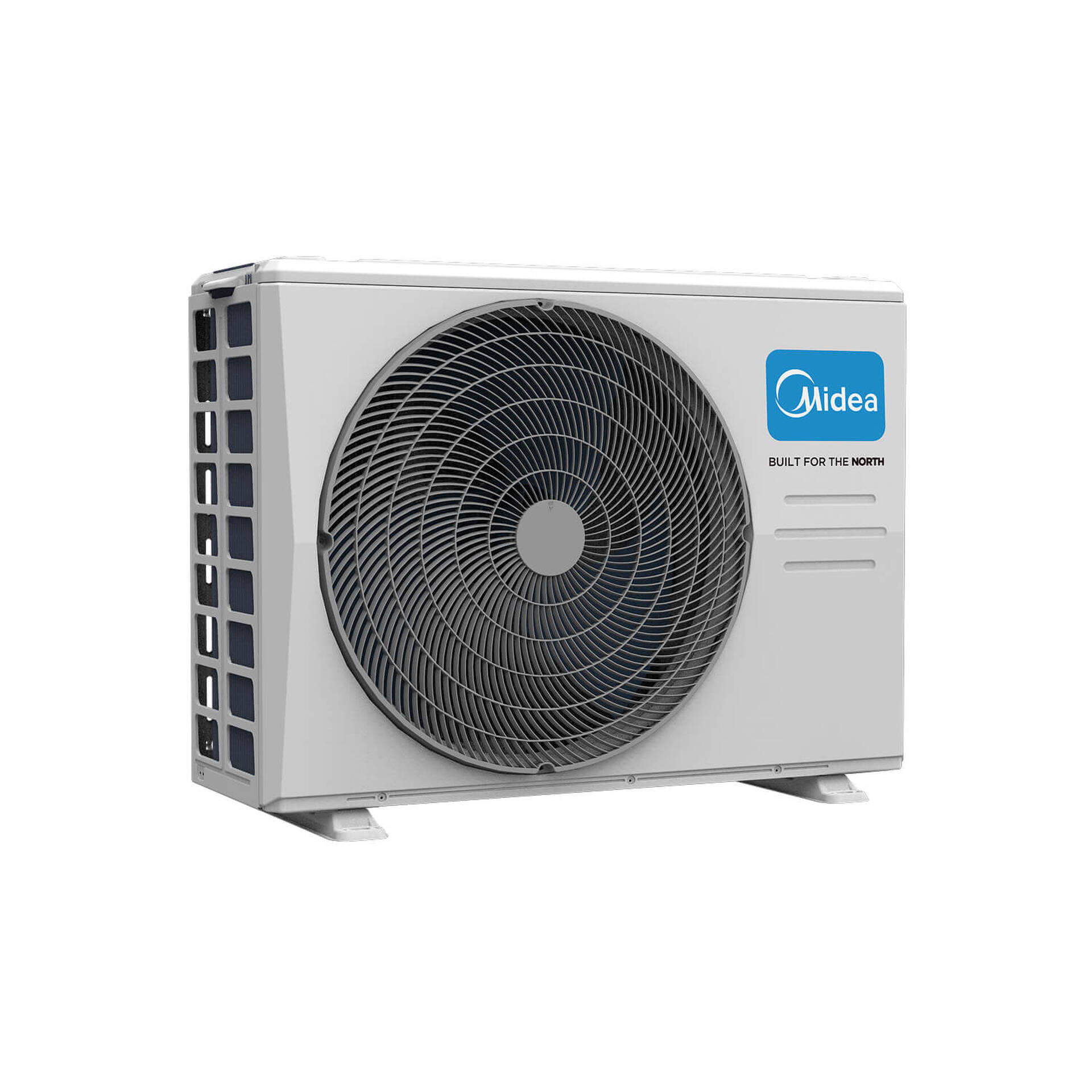

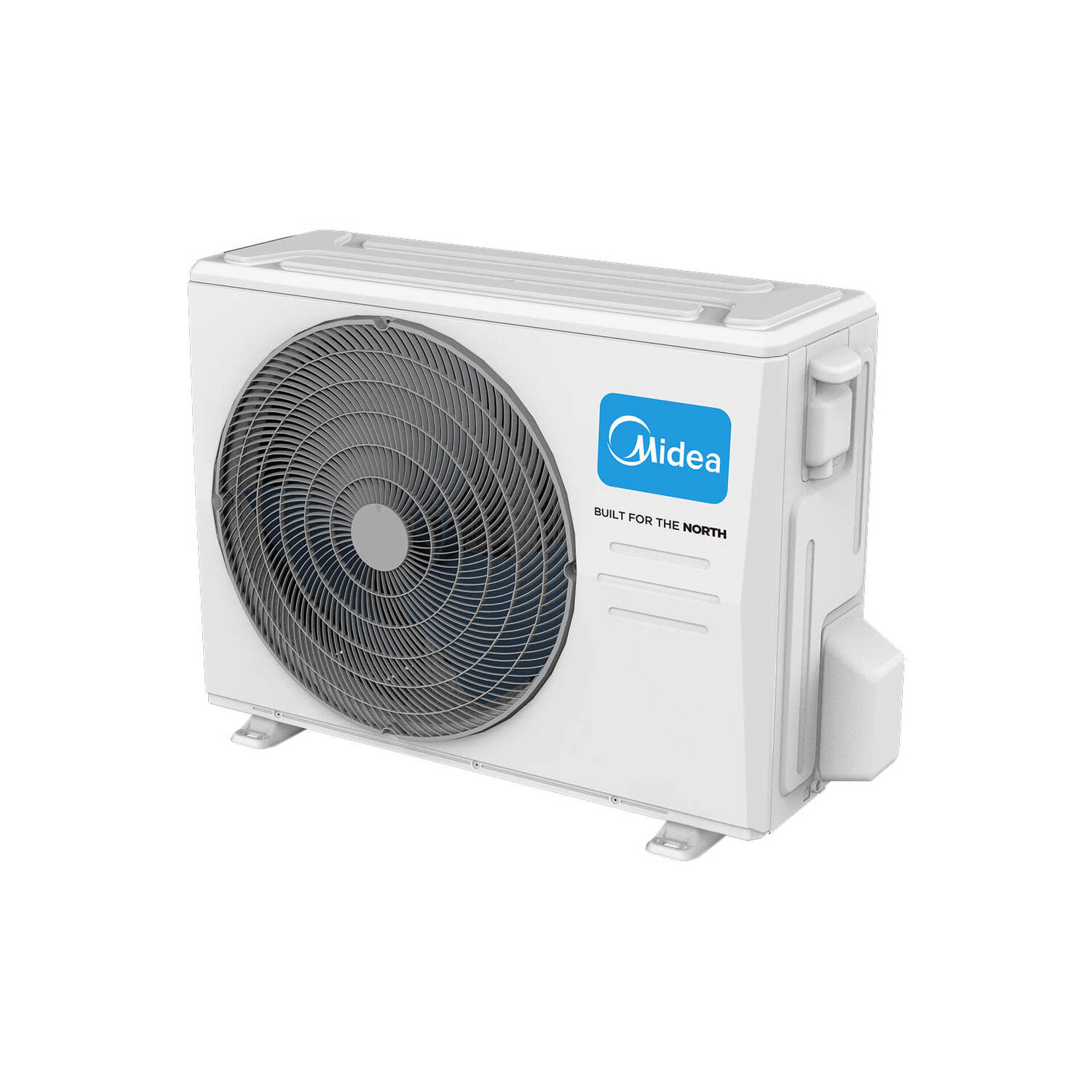

| Outdoor unit | |
| Outdoor unit weight | 43.5 kg |
| Outdoor unit dimensions (width x height x depth) | 890x673x342 mm |
| Outdoor noise level | 56 dB(A) |
